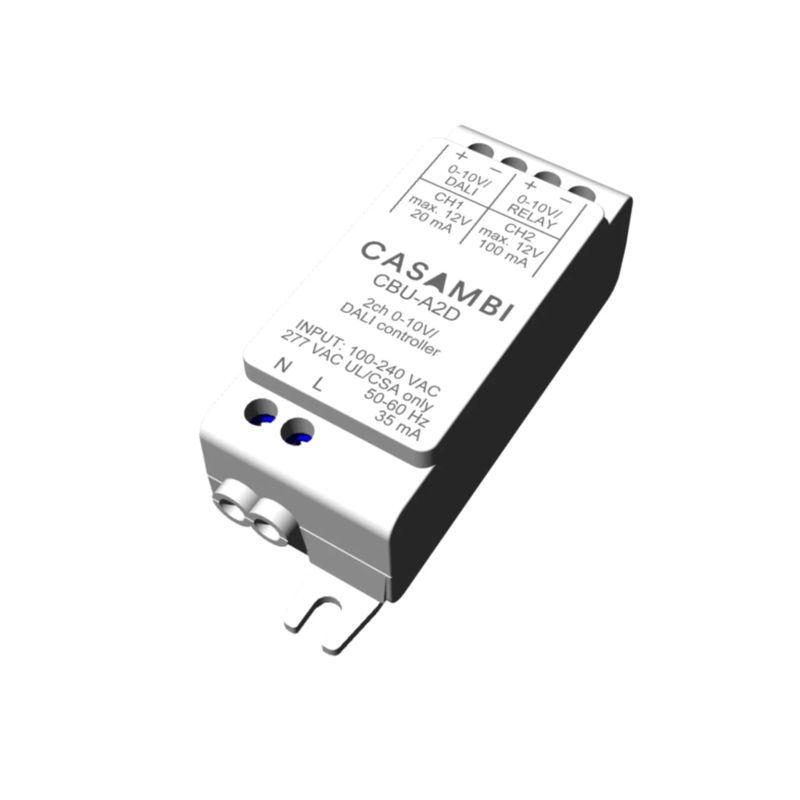

CBU-A2D Bluetooth controllable 2ch 0-10V/DALI controller
$85.49
$129.95
AboutThe CBU-A2D is a truly versatile led driver with controller, allowing you to control one or two 0-10V led drivers that are dimmable with incredible precision. It also has an incredibly advanced mode for connecting a tunable white led driver with two 0-10V interfaces. Additionally, the CBU-A2D can be configured into DALI mode, which allows it to connect to a DALI led driver or DALI sensor for automatic presence detection and daylight harvesting—allowing you to benefit from extra energy savings. With all of these amazing features packed into such a small device, the CBU-A2D is the perfect led driver solution.SpecificationsInput voltage range:100-240 VAC 50-60 HzMax. mains current:35 mANo-load standby power:< 0,5 WChannel 1 output:Output voltage, 0-10V 0-10 VDC, max. 7 mA (sinking)Output voltage, DALI 12 VDC, max. 20 mA (sourcing)Maximum number of drivers: 1 driver 1 sensor/push buttonChannel 2 output:Output voltage, 0-10V: 0-10 VDC, max. 7 mA (sinking)Output voltage, relay control: 12 VDC, max. 100 mA (sourcing)Maximum number of drivers: 1Dimensions:76,0 x 26,0 x 23,0 mmProtection:IP20Downloads
